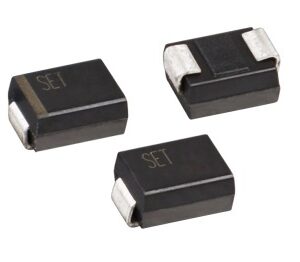

TVS DIOIDE

(Ratings at 25°C ambient temperature unless otherwise specified.)

Parameter Symbol Value Unit

Peak Power Dissipation with a 10/1000 μs waveform(1)(2)(Fig.2)-Single Die Parts PPPM 600 W

Peak Power Dissipation with a 10/1000 μs waveform(1)(2)(Fig.2)-Stacked Die Parts(5) PPPM 800 W

Peak Power Dissipation on Infinite Heat Sink at TL=50 °C PD 5.0 W

Peak Forward Surge Current,8.3 ms single half sinewave superimposed on rated load

(JEDEC Method)(3) IFSM 100 A

Maximum Instantaneous Forward Voltage at 50 A for Unidirectional Only(4) VF 3.5 / 5.0 V

Operating Temperature Range TJ -65 to 150 °C

Storage Temperature Range TSTG -65 to 175 °C

Typical Thermal Resistance Junction to Lead RθJL 20 °C / W

Typical Thermal Resistance Junction to Ambient RθJA 100 °C / W
