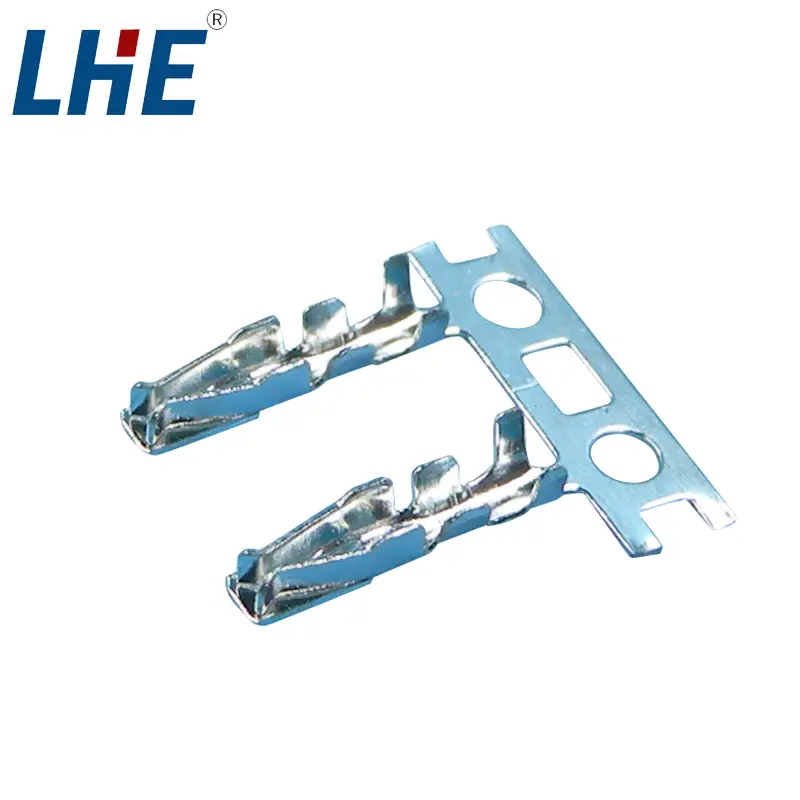

A2006-TP2
- Connector Product Type: TerminalCenterline (Pitch): 2.0 mmConnector System: Wire-to-BoardProduct category: A2006-TP
₹0.80
ComparePART CODE -A2006(PHSD) Connector 2.0mm Pitch
Manufacturer – LHE
| Product category: A2006 SERIES | Picth: 2.0mm |
| Temperature: -25℃~105℃ | Material: Phos Bronze Tin |
| Current(Max)(A): 3 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 28-22 | UL: E364711 |
| Keywords: wire to board terminal,housing terminal,male terminal | |
Technical Specifications
Poles:6 to 60P Current rating:3.0A AC,DC
Voltage rating:250V AC,DC
Temperature range:-25°C to +85°C
Contact resistance:≤30mΩ Insulation resistance:≥1000mΩ
Withstand voltage:1000V AC/minute Applicable wire:
AWG #30 to #22 Applicable PC board thickness:0.8 to 1.6mm
