5 in stock

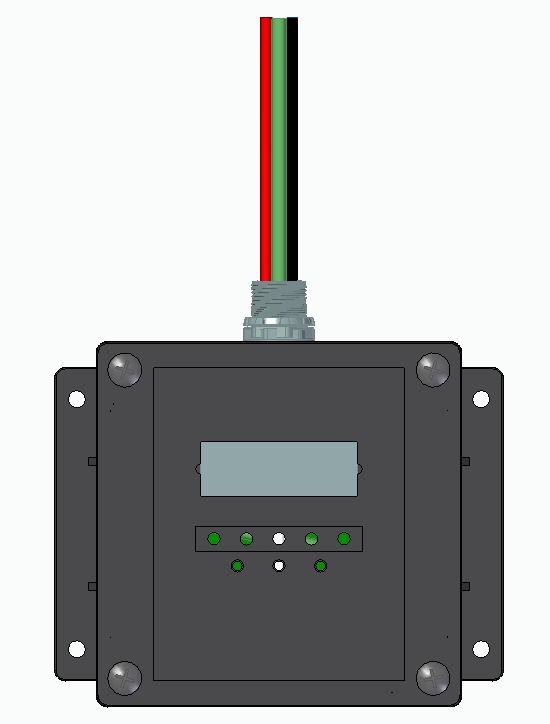

Model. —CSD40MS277L405-H ( 200 kA )
Nominal System Voltage (Un) – 240/415 Vac
Max. Continuous Operating Voltage (Uc) VAC (L-N,L-G,N-G,L-L) – 320/320/320/640
Nominal Discharge Current (8/20 μs) (In) – 20 kA
Max. Discharge Current (8/20 μs) (Imax) – 200 kA
Voltage Protection Rating (VPR) V (L-G,L-N,N-G,L-L) – 1200/1000/1000/1800
Max. Discharge Current (10/350 μs) (Imax) – 8kA
SCCR – 200 kA
₹80,000.00
5 in stock
CompareModel. —CSD40MS277L405-H ( 200 kA )
Nominal System Voltage (Un) – 240/415 Vac
Max. Continuous Operating Voltage (Uc) VAC (L-N,L-G,N-G,L-L) – 320/320/320/640
Nominal Discharge Current (8/20 μs) (In) – 20 kA
Max. Discharge Current (8/20 μs) (Imax) – 200 kA
Voltage Protection Rating (VPR) V (L-G,L-N,N-G,L-L) – 1200/1000/1000/1800
Max. Discharge Current (10/350 μs) (Imax) – 8kA
SCCR – 200 kA
Features ———— Specifications
System ———— Wye 3Ph+N+G
Modes ———- L–L, L–N, L–G, N–G
Installation ———— Mount
Alarm ——— Surge Counter Display, LED Indication & Buzzer
Operating State / Fault Indication. — Green / Red
NEMA Rating (IP Rating). —— 4X(IP67)
Wiring Ability. ——- 36″ #10 AWG LEADS
Enclosure Material —— Aluminum
According to Standard ———– Compliance to UL Type 1 Listed SPD
Location ———- Indoor / Outdoor
Operational Temperature Range. —- (–40 to 85) °C
