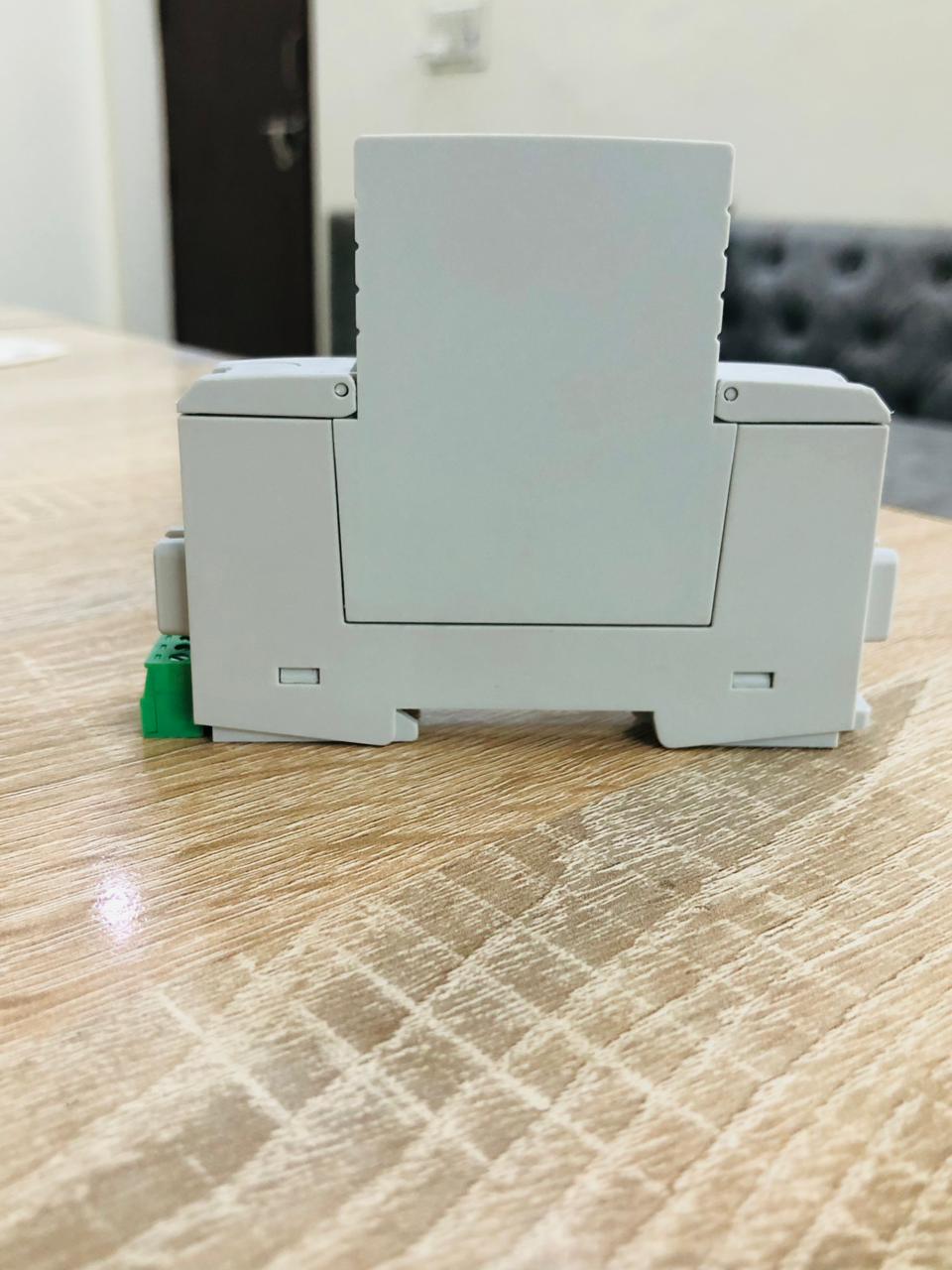

SD20R1000L312PV ( 1000VDC) SPD
-
SD25T1000L312PV- 1000 VDC 25 kA 50 kA 4.0 kV DC+/DC- —
-
Surge Protection Device (SPD) for PV System is a device that provides surge protection for PV System.
₹1,110.00
Compare● With Remote Signal Contact and Failure Indication
● Pluggable Module for Easy Replacement
● Internal Thermal Protection, Fail-safe
● Photovoltaic Inverter
● Distribution Power Unit (DPU)
● DC Lightning Protection Box
● DC Power Supply
● Energy Storage Converter
Technical Specifications
Degrees of Protection Provided – IP20
Wiring Ability – (1.5 ~ 25) mm2 ( Flexible) / 35 mm2 ( Rigid)
Installation — 35 mm DIN rail
Alarm — Remote + Indicator
Operating State / Fault Indication – Green ( OK ) / Red ( Fault )
Remote Indication Contacts – AC: 250 V / 0.5 A , 125 V / 1.0 A
DC: 250 V / 0.1 A , 125 V / 0.2 A , 75 V / 0.5 A
Cross-section of Remote Indication Conductors – 1.5 mm2
Short Current Rating ISCCR – 1000 A
According to Standard — UL 1449, IEC/ EN 61643-31
Altitude – 500 ~ 5000 m
Operational Temperature Range – (-40 ~ 85) °C
